Size: 900*750*100mm or Customized
Reflective Film: 3m engineering-grade film
Function: GPS / RF Sync
Visual Distance: >800m
Water Proof: IP65
•Solar-powered LED-based technology
•Programmable for sequential arrow movement
•Ultra Bright Amber LEDs
•Automatic Dusk to Dawn operation
•Integrated Solar Panel with battery
•Metallic cabinet, all weather resistant
•Sleek & light weight
•Color – Yellow background with black arrow area
•Visibility > 500mtrs
•360 Deg rotation facility
| Voltage: | DC12V/DC6V |
| Power: | 2W |
| Leds distance: | < 4.5CM |
| Flashing frequency: | 40±2/min, Flashing automatically at night |
| Visual distance: | > 800M |
| Working in rainny days: | > 360H |
| Material: | Aluminium&Galvanized sheet |
| Solar panel: | 17V/3W |
| Battery: | 12V/8AH |
| Size: | 900*750*100mm or Customized |
| Function | GPS / RF Sync |

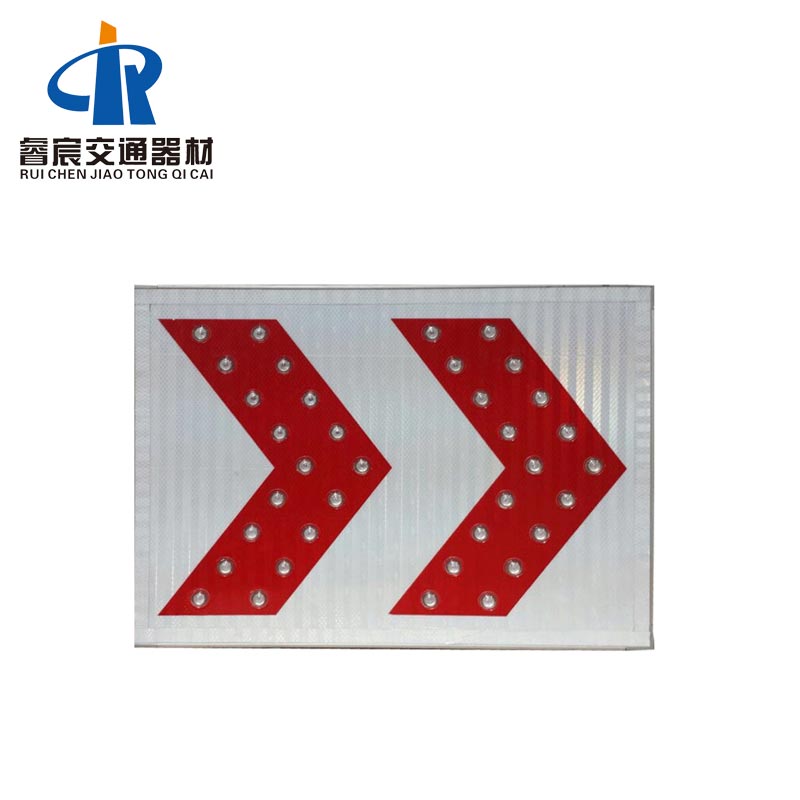

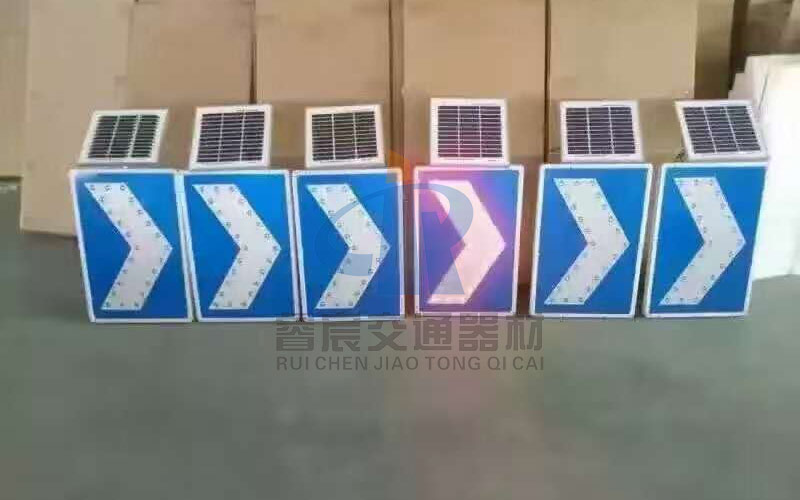

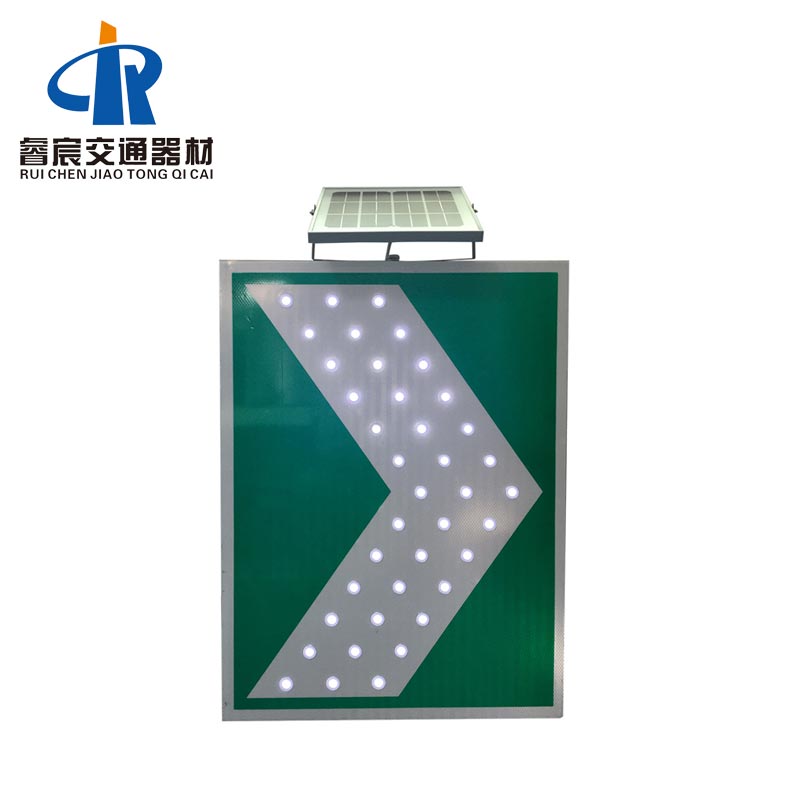

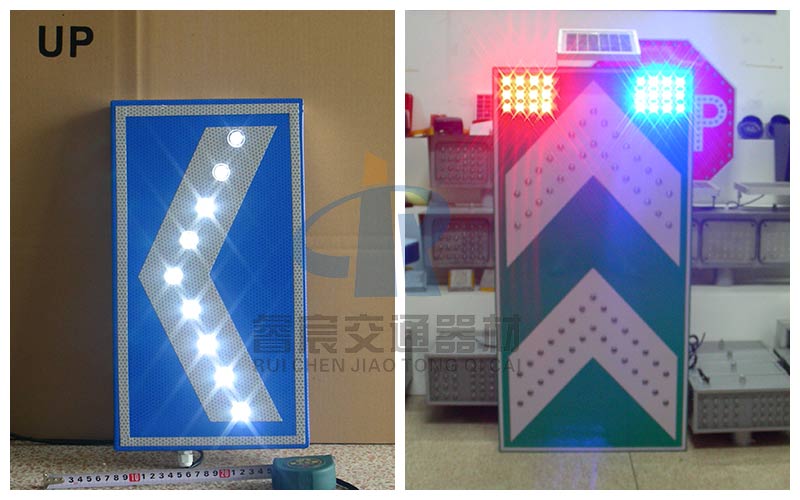

Solar Powered Directional Arrow comprising of 90 nos super bright LEDs that emit vibrant flashing light which effectively improves driver’s visibility and enhances safety at night time and during inclement weather conditions.
APPLICATIONS:
♥ T-Junctions
♥ Curving Road
♥ Temporary Diversions
♥ Road Work Zones
Benefit
♥ Indicate the direction of the road
♥ Warn motorist about diversions, blind or sharp turns
♥ Improve visibility of route
♥ Avoid road accidents
♥ Route guidance systems
Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Body material: PC(Japan Brand)
Warranty: 12 Months
Power supply: USA Brand Flexible High Efficient Solar Panel 5V/0.4W
Visual distance: ＞ 800m
Load Bearing: 20 Tons
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: Without shank
Load Bearing: More Than 40 Tons (can be installed in the middle of the road)
Warranty: 18 Months
Body material: Aluminium(GB-ADC-12)+PC(Japan Brand)
Power supply: USA Brand Flexible High Efficient Solar Panel
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
