Load Bearing: More Than 40 Tons (can be installed in the middle of the road)
Warranty: 18 Months
Body material: Aluminium(GB-ADC-12)+PC(Japan Brand)
Power supply: USA Brand Flexible High Efficient Solar Panel
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68

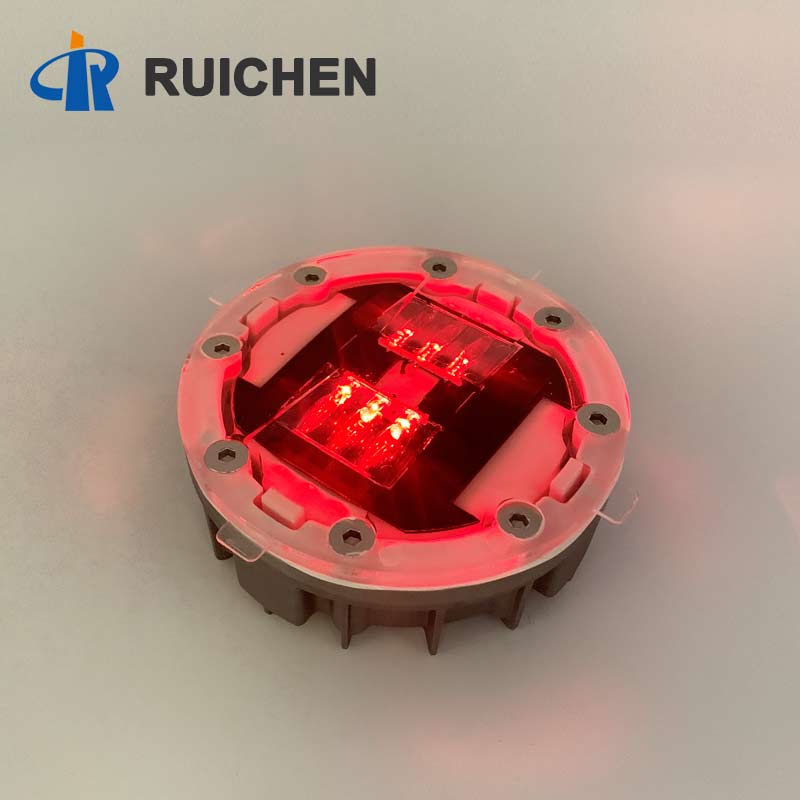

Heavy Duty LED Road Stud Lights Features:
Aluminum LED Road Stud Parameters:
| Material: | Aluminium(GB-ADC-12)+PC(Japan Brand) |
| Power supply: | USA Brand High Efficient Solar Panel 5V/60MA for lithium battery |
| Battery: | Lithium battery 3.2V/500MA(made in Japan); |
| Working model: | Blinking or Constant Charging in the daytime and working automatically at night |
| Life span: | 5years for lithium battery; |
| Resistance: | > 40T(can be installed in the middle of road) |
| Size: | φ125*50mm (φ4.92″*1.97″) |
| Visual distance: | >800M |
| Water poof: | IP68 |
| Carton Size: | 1pcs/box; 30pcs/ctn; weight: 30kgs; carton size: 67.5*28*20cm 1pcs/box; 30pcs/ctn; weight: 66.14bs; carton size: 26.57″*11.02″*7.87″ |
Application of Heavy Duty LED road studs C2:
♥Schools and hospitals
♥Highways
♥High traffic areas
♥Walking paths
♥Transit stations
♥Parks and campuses
♥Road Center
How to install Aluminum led road studs lights C2:
1.Carefully mark the distance between the placement of led road stud lights. To prevent an adverse effect on the ground, use a proper tool such as Core Drill. Drill 127mm and depth will be 45mm.
2.Remove all debris from the installation hole.
3.Pour epoxy into the holes per the manufacturer’s instruction.
4.Verity that the installation hole is straight. Verify that the installation hole is large enough to allow the epoxy to surround the led road stud shaft.
5.Set the lighting surface of the solar led road stud light to the desired viewing angle. Verify the epoxy is evenly adhering to the installation hole and solar led road stud shaft.
After curing the LED road stud for 6-8 hours, remove the installation of the isolation facility.
Load Bearing: More Than 30 Tons
Warranty: 18 Months
Body material: GB Cast Aluminium alloy
Power supply: USA Brand Flexible High Efficient Solar Panel (2.5V/0.38W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
Body material: PC(Japan Brand)
Warranty: 12 Months
Power supply: USA Brand Flexible High Efficient Solar Panel 5V/0.4W
Visual distance: ＞ 800m
Load Bearing: 20 Tons
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: Without shank
Load Bearing: More Than 40 Tons (can be installed in the middle of the road)
Warranty: 18 Months
Body material: Aluminium(GB-ADC-12)+PC(Japan Brand)
Power supply: USA Brand Flexible High Efficient Solar Panel
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Load Bearing: >20T(static)
Warranty: 12 Months
Body material: GB Cast Aluminium alloy
Power supply: Solar panel(monocrystalline 2.5V/0.2W)
Visual distance: ＞ 800m
Working Mode: Flashing or Constant
Waterproof: IP68
Shank: With shank or Without shank
